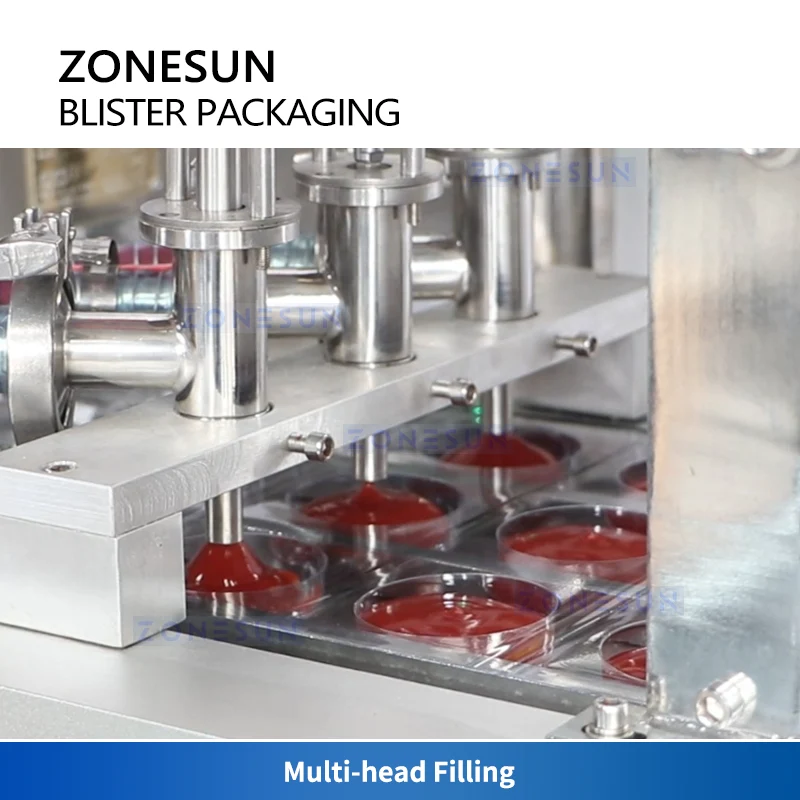

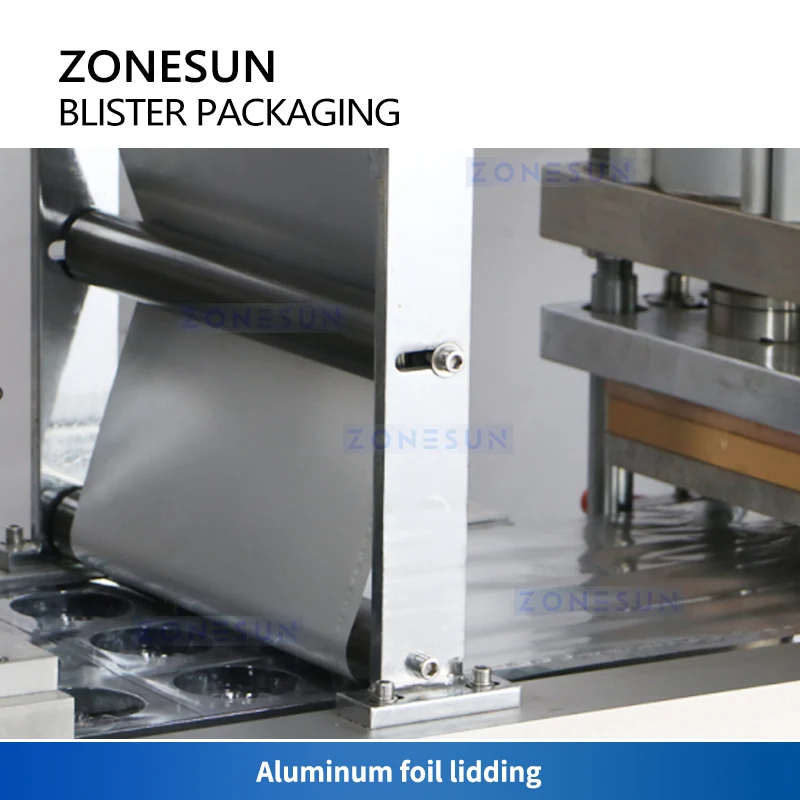

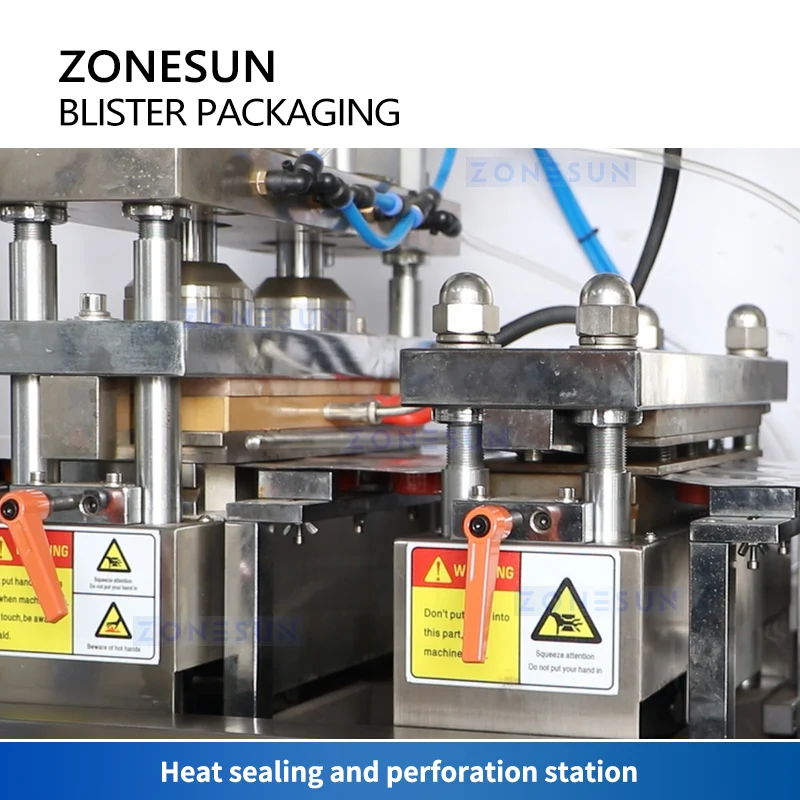

Streamline your packaging line with the ZS-PJZN18 Blister Cup Packing Machine. Designed for high-speed, airtight sealing of liquid and paste-filled cups, this automatic system handles filling, sealing, and blister packaging with precision. Its advanced design ensures stable performance and minimal manual intervention, making it ideal for food, beverage, and pharmaceutical production environments.
Parameter
- Model: ZS-PJZN18
- Filling Capacity: 200ml

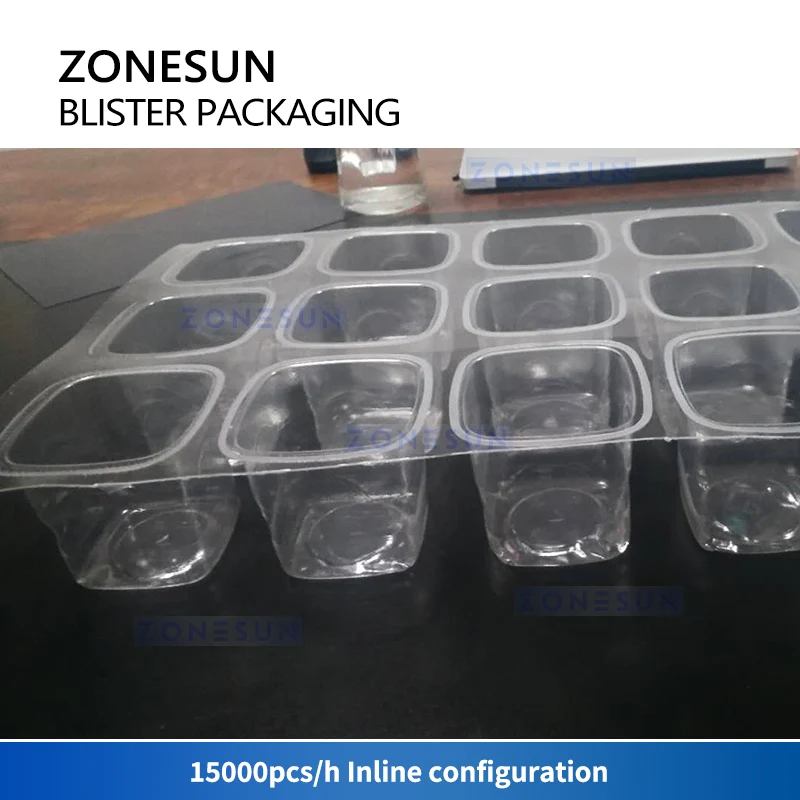

- Production Capacity: 15000 cups/hour
- Compressed Air Consumption: 1.5m³/min
- Molding Air Pressure: ≥0.6Mpa
- Water Consumption: 0.2 tons/hour (for mold cooling)
- Filling Error: ±2%
- Sealing Acceptance Rate: ≥99.9%
- Total Power: 23KW
- Electric Heating Power: 18KW
- Motor Power: 4KW
- Filling Material: Purified Water
- Power Supply: 220V 50Hz (Three-phase Five-wire)
- Dimensions: Approximately 11350mm × 920mm × 2300mm
